OAuth Introduction
What is OAuth2.0
A delegation protocol.
The definition, enable a third-party application to obtain limited access to an HTTP service, either:
- on behalf of a resource owner by orchestrating an approval interaction between the resource owner and the HTTP service
- allow the third-party application to obtain access on its own behalf
Components
- resource ower, usually a person has access to an API and can delegate access to that API
- protected resources, the component that the resource owner has access to, such as some Web API
- client , is the piece of software that access the protected resources on behalf of the resource owner. In OAuth, the client is whatever software consumes the API that makes up the protected resource.
An example
- You have a cloud phote-storage service and a phote printing service.
- Want to print the photes stored in storage service.
- Those two services are running by different companies.
- Use OAuth to solve this problem by letting you delegate access to your photos across different services, all without giving your password away to phote printer.
- resource owner (you/browser)
- protected resources (photos in storage service)
- client (printing service that want to access photo storage service)
What we want ?
- a kind of limited credential, issued seperately for each client and each user combination to be used at a protected resources.
- then tie limited rights to each of these limited credentials.
- a network based protocol that allowed the generation and secure distribution of these limitied credentials across security boundaries
How OAuth solve the problem?
- The end user delegates some part of their authority to access the protected resource to client application to act on their behalf.
- OAuth introduces another component into the system: authorization server(AS). Now, there are four components:
- AS
- resource ower, user(you/browser)
- protected resources
- client, app/api
- AS is trusted by the protected resource to issue special purpose security credentials – called OAuth access tokens to clients.
- Steps to acquire a token:
- the client first sends the resource owner to the authorization server in order to request that the resource owner authorize this client.
- the resource owner authenticates to the authorization server and is generally presented with a choice of whether to authorize the client making the request.
- the client is able to ask for a subset of functionality, or scopes
- Once the authorization grant has been made, the client can then request an access token from the authorization server.
- An authorziation grant is the means by which an OAuth client is given access to a protected resource using the OAuth Protocol, and if successful it ultimately results in the client getting a token.
- Don’t misunderstand authorization code as it, the entire OAuth process is the authorization grant.
- This access token can be used at the protected resource to access the API, as granted by the resource owner.
OAuth’s components

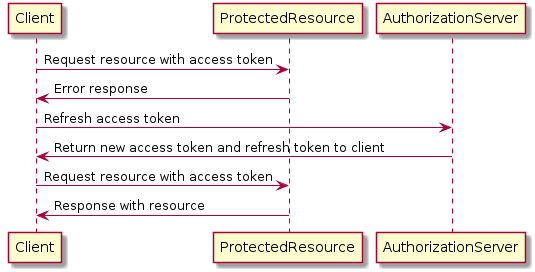

Refresh tokens
Similar in concept to the access token
Different, though, is that the token is never sent to the protected resources. Intead, the client uses the refresh token to request new access tokens without involving the resource owner.
diagram
Authorization code grant
ResourceOwner -> Client: 1.user visits service
Client --> ResourceOwner: 2.client redirect user(ResourceOwner) to Authorization endpoint
ResourceOwner -> AuthorizationServer: 3. ResourceOwner do the authentication
AuthorizationServer --> ResourceOwner: 4. AuthorizationServer send user a redirect response
ResourceOwner -> Client: 5. Redirect reponse causes user to send get request to client.
Client -> AuthorizationServer: 6.POST request to AuthorizationServer on its token endpoint
Client <- AuthorizationServer: 7. AuthorizationServer issues an OAuth access token to the client
Client -> ProtectedResource: 8. Client sends access token to protected resource
Client <- ProtectedResource: 9. Protected resource returns resource to Client

step2’s response is an HTTP redirect, it causes step 3: cause the browser to send an HTTP GET to the autorization server. step2 have the following query parameters:
response_type
scope
client_id
redirect_uri
state
step5, the client could receive
code
, known as authorization code.state
, matches the value that it sent in the step 2.
step6, POST request with passing its
client_id
andclient_secret
as an HTTP Basic authorization header.Authorization: Basic b2F1dGgtY2xpZW50LTE6b2F1dGgtY2xpZW50LXNlY3JldC0x
- This separation between different HTTP connections ensures that the client can authenticate itself directly without other components being able to see or manipulate the token request.
step7, authorization server need to ensure the request from step6 is legitimate, issue accessToken if valid.
check the client’s credentials (passed in the authentication header) to see which client is requesting acess.
check code (authorization code) from the body. It incldues
- which client made the initial authorization request
- which user authorized it
- what it is authorized for.
if the code has not been used previously and the client making this request is the same as the client that made the original request, then the authorization server generates and returns a new access token for the client
HTTP 200 OK Date: Fri, 31 Jul 2015 21:19:03 GMT Content-type: application/json { “access_token”: “987tghjkiu6trfghjuytrghj”, “token_type”: “Bearer” }
- The response could also include a refresh token (used to get new access tokens without asking for authorization again)
- additional info could be scopes and expiration time.
step8, the client get the access token from step7 response and present it to the protect resource
present the access token as OAuth Bearer token
GET /resource HTTP/1.1 Host: localhost:9002 Accept: application/json Connection: keep-alive Authorization: Bearer 987tghjkiu6trfghjuytrghj
can store this access token in a secure place for as long as it wants to use the token, even after the user has left.
step9, protected resource use the access token to determine whether it is still valid
- HOW to validate? A protected resource has a number of options for doing this token lookup. The simplest option is for the resource server and the authorization server to share a database that contains the token information. The authorization server writes new tokens into the database when they are generated, and the resource server reads tokens from the store when they are presented.
